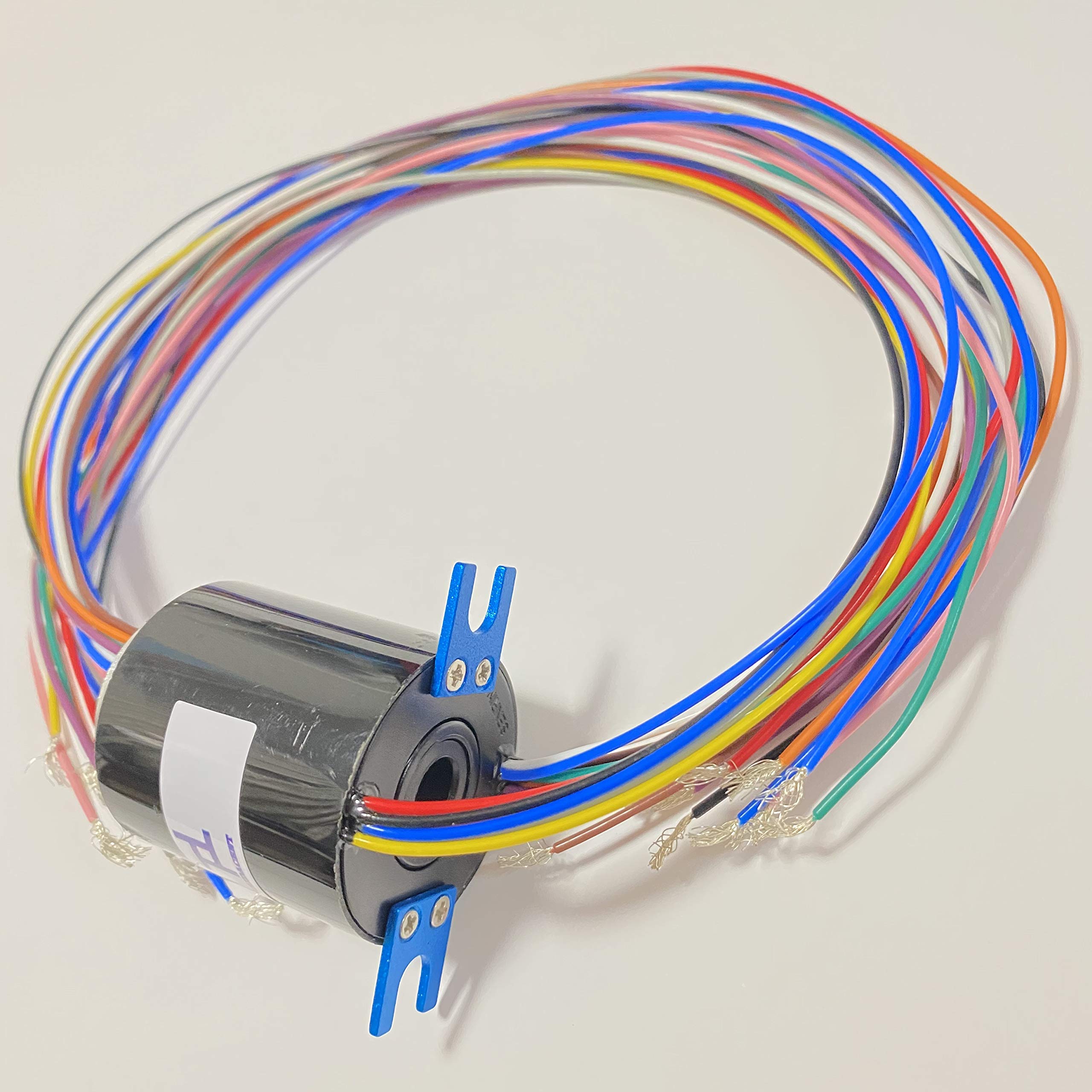

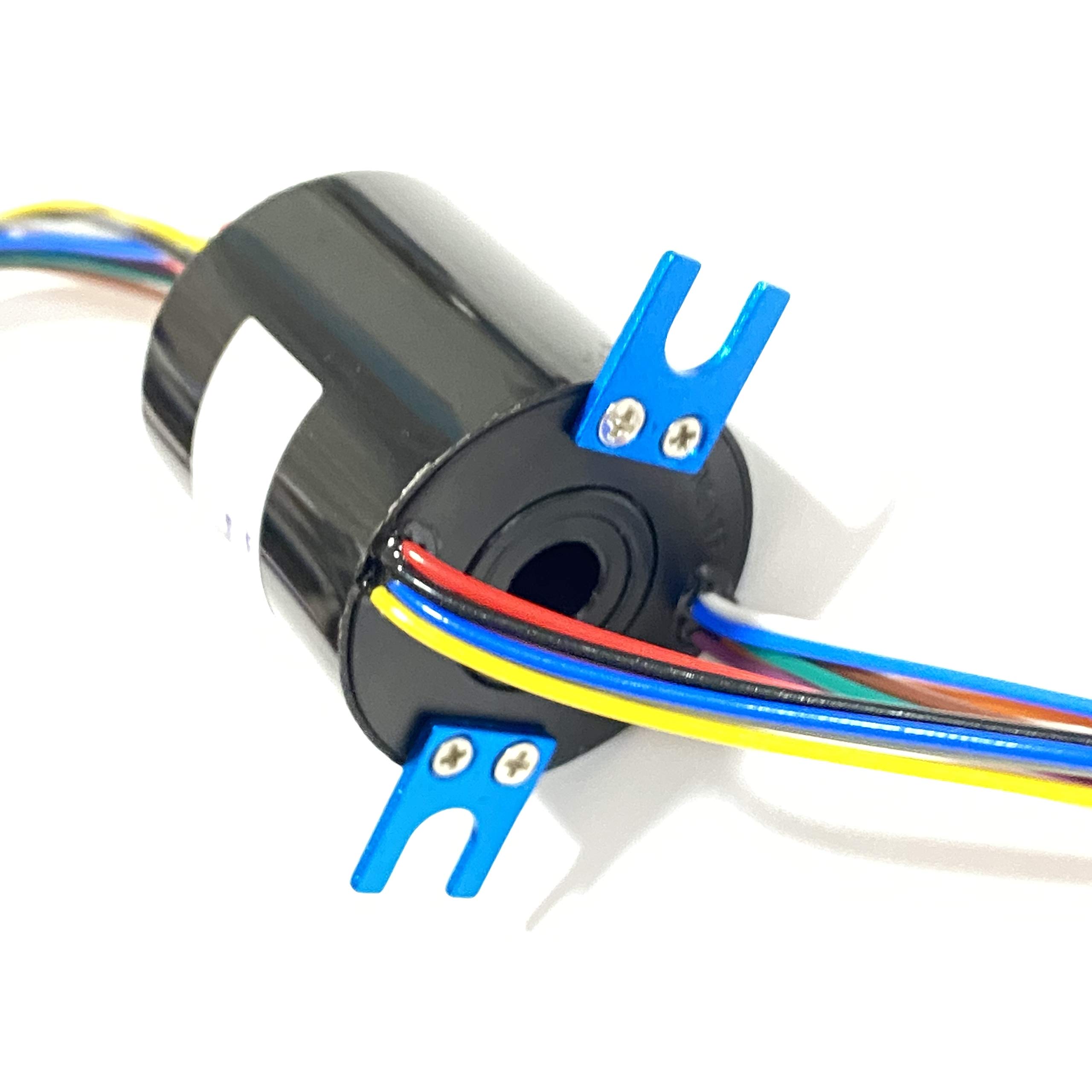

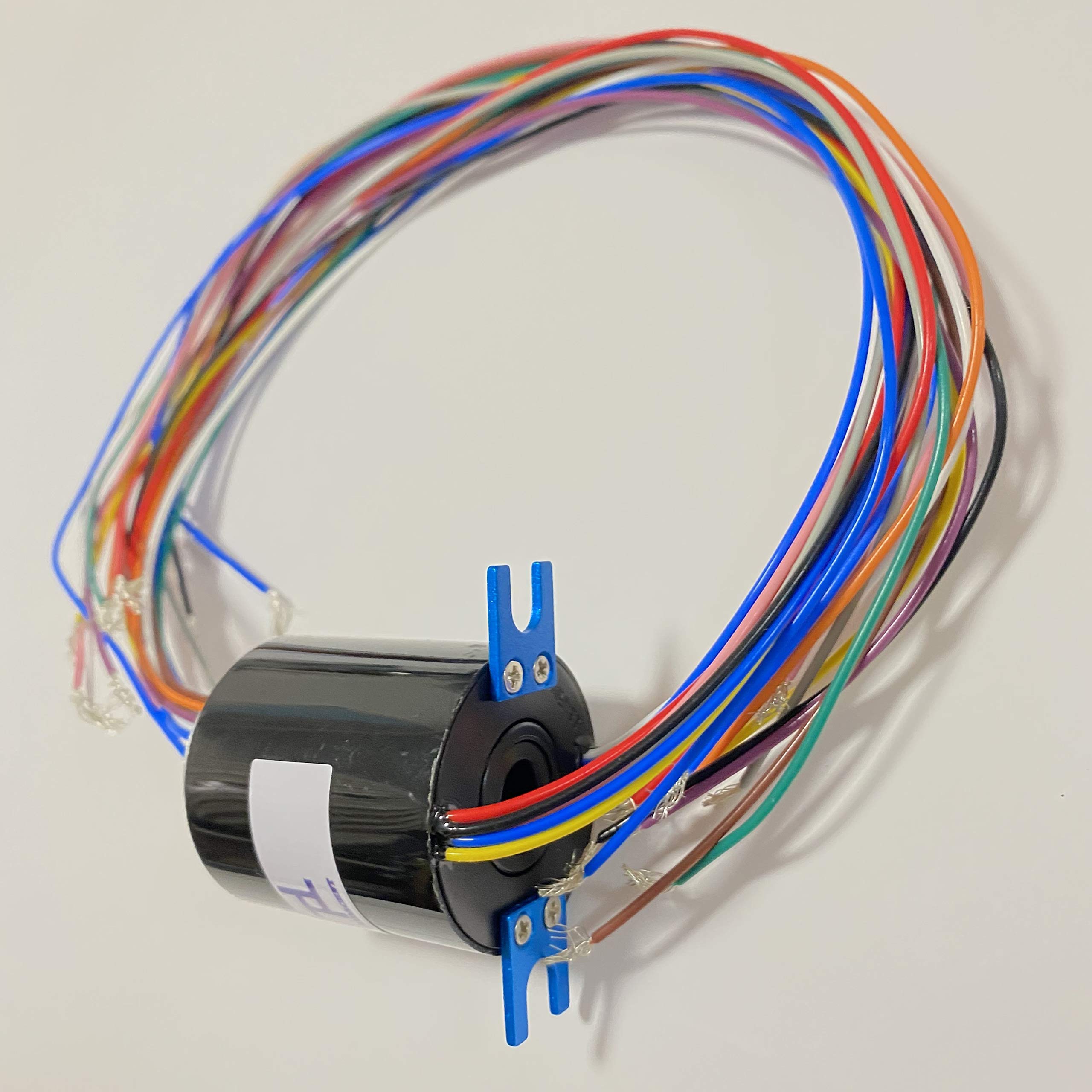

Installation 1, Fix the aluminum ring on the rotating shaft with screws 2, Fixed stator end Parameter Number of channels: 2~96 roads (lines), can be customized 2~300 roads Voltage range "0~600 VDC/VAC Shell material: aluminum alloy Working life: > 80 million rpm (working speed, environment) Electrical noise: 80 million rpm (working speed, environment) Electrical noise: <6 milliohms (mΩ) Pressure resistance: 1000VDC at 50Hz, 10s Insulation strength: 1000MQ at 600VDC, 10s Working temperature: -40 ° C ~ 850 ° C Shockproof level: MIL-STD-810E Current: Signal 2A, current 10A/Channel Speed: 250RPM Torque: 0.02N.m; +0.01N.m/6 way Contact material: precious metal Dynamic resistance change value: <0.01Ω Wire size: UL Teflon at Awg22, Awg16 Wire length: 300mm (can be customized longer) Protection level: IP51 (customizable IP68) Working humidity 10%~85%RH 360 degree infinite (continuous) rotation Applicable to all kinds of equipment 360 degree rotation conduction or transmission signal forward and reverse no problem, can reciprocate rotation can also rotate 360 ​​degrees, current / signal will never be interrupted Using precision bearings High quality precision bearings, safe and reliable The wires are also all gold-plated/silver-plated. It is not a common home improvement wire with high electrical conductivity, excellent signal transmission, high temperature resistance of 250 degrees, and higher safety factor Suitable for 360° continuous rotation of conductive or transmission signals for various devices Applicable scenes: Some devices require 360-degree continuous rotation, but because the wires (power cable/signal cable/USB cable/network cable/video cable, etc.) on the device cannot be rotated, the problem of winding can be completely terminated by using the slip ring. Feature Using gold-gold contact points to ensure stability and service life, mainly used in civilian and commercial fieldsSmooth operation, compact structure, low torque, compatible with data bus protocolThe stator wire and the rotor wire use colored wires to simplify the circuit connectionThe conductive ring adopts a 90-degree angle V-groove design, which has smooth rotation, low torque and low electrical noise.Integral structure of the product, advanced fiber brush technology, support mixed transmission of power and signal Feature Using gold-gold contact points to ensure stability and service life, mainly used in civilian and commercial fieldsSmooth operation, compact structure, low torque, compatible with data bus protocolThe stator wire and the rotor wire use colored wires to simplify the circuit connectionThe conductive ring adopts a 90-degree angle V-groove design, which has smooth rotation, low torque and low electrical noise.Integral structure of the product, advanced fiber brush technology, support mixed transmission of power and signal Application field GimbalElectrical test equipmentManufacturing and processing control equipmentMedical equipmentCCTV security monitoring equipmentRobotExhibition/display equipmentRotating tableSmall wind turbineRadar antenna
