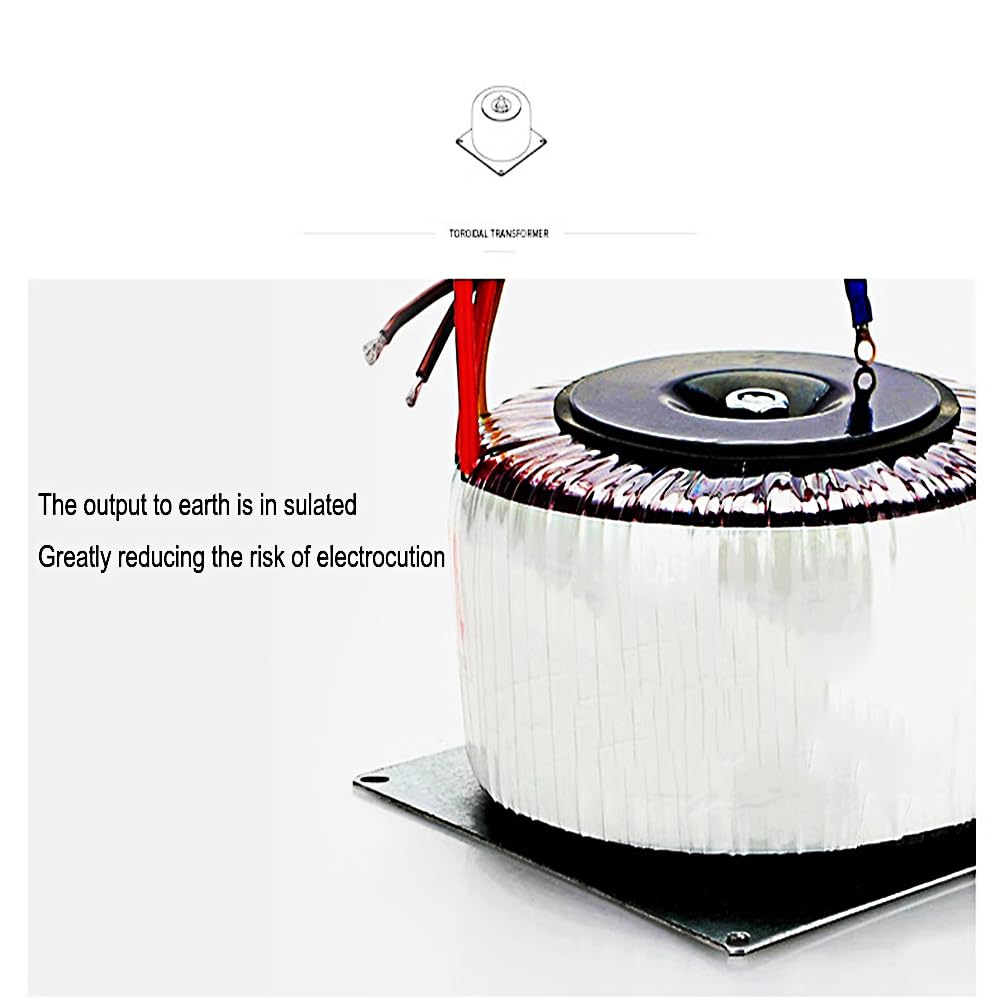

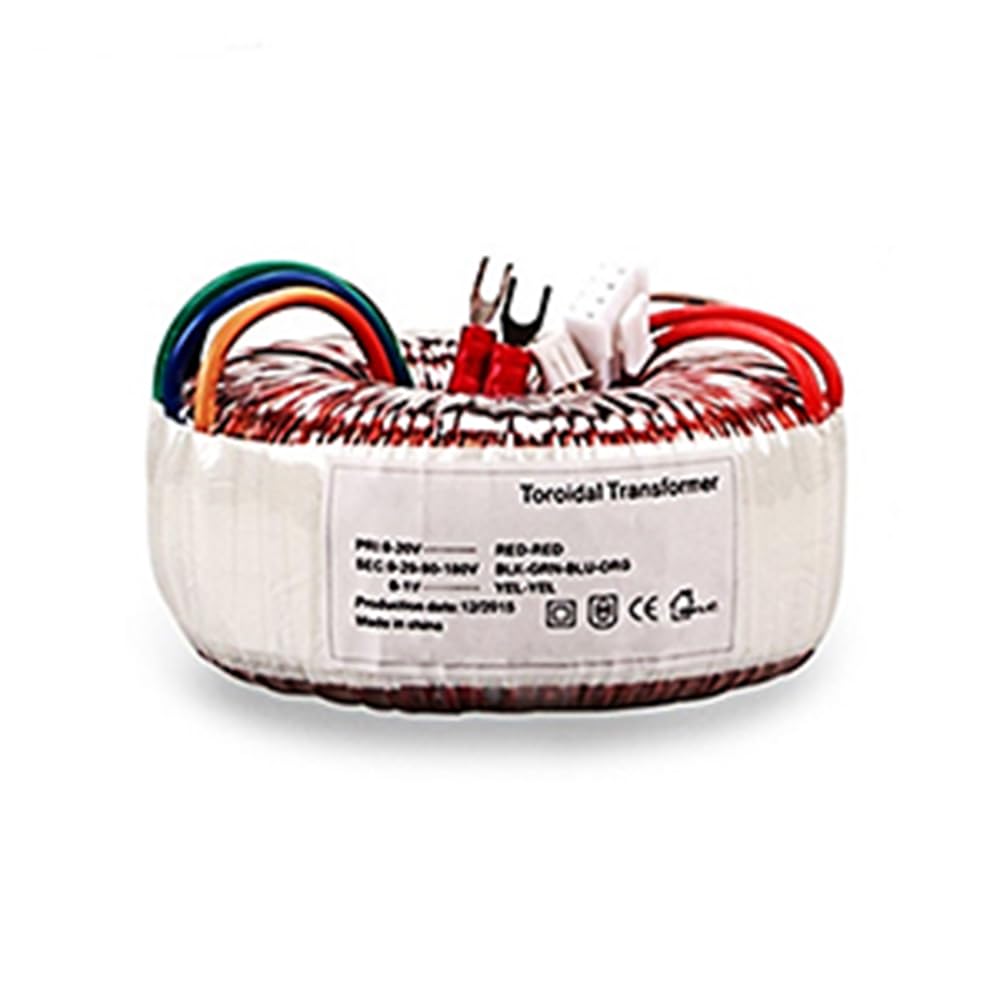

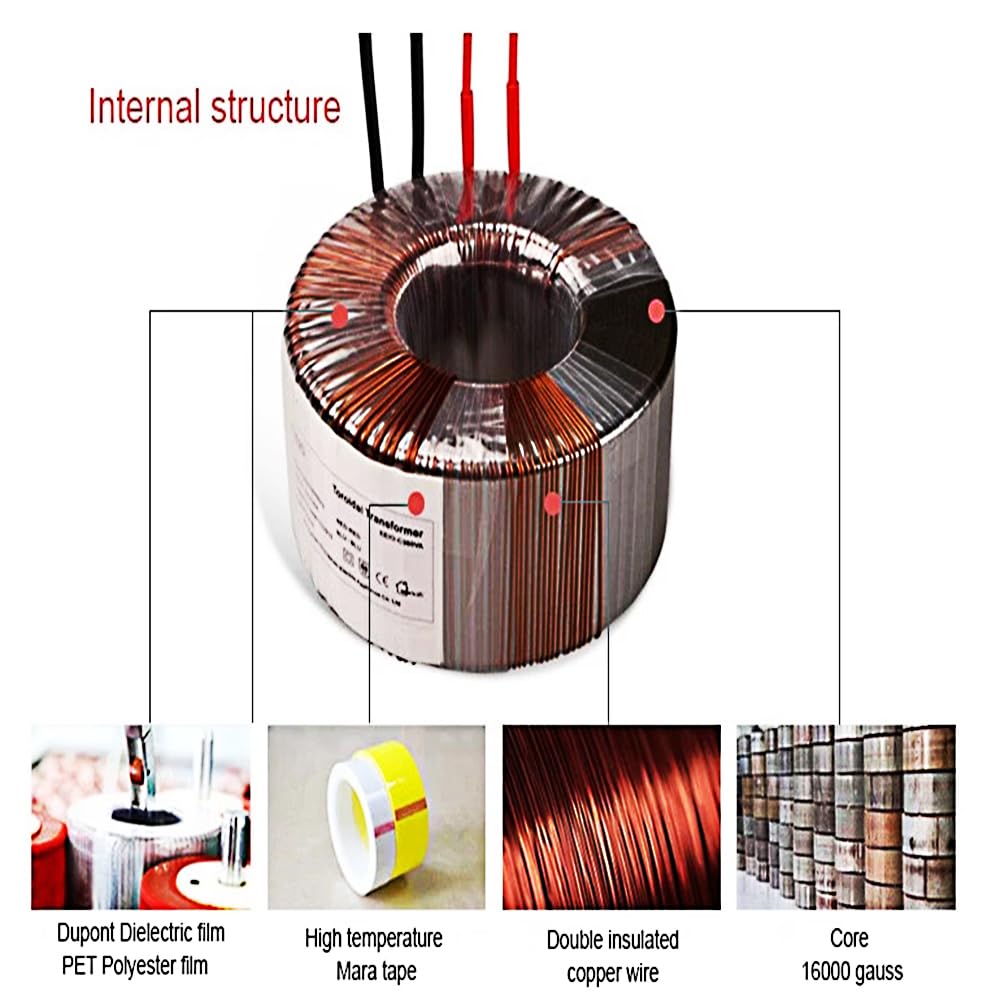

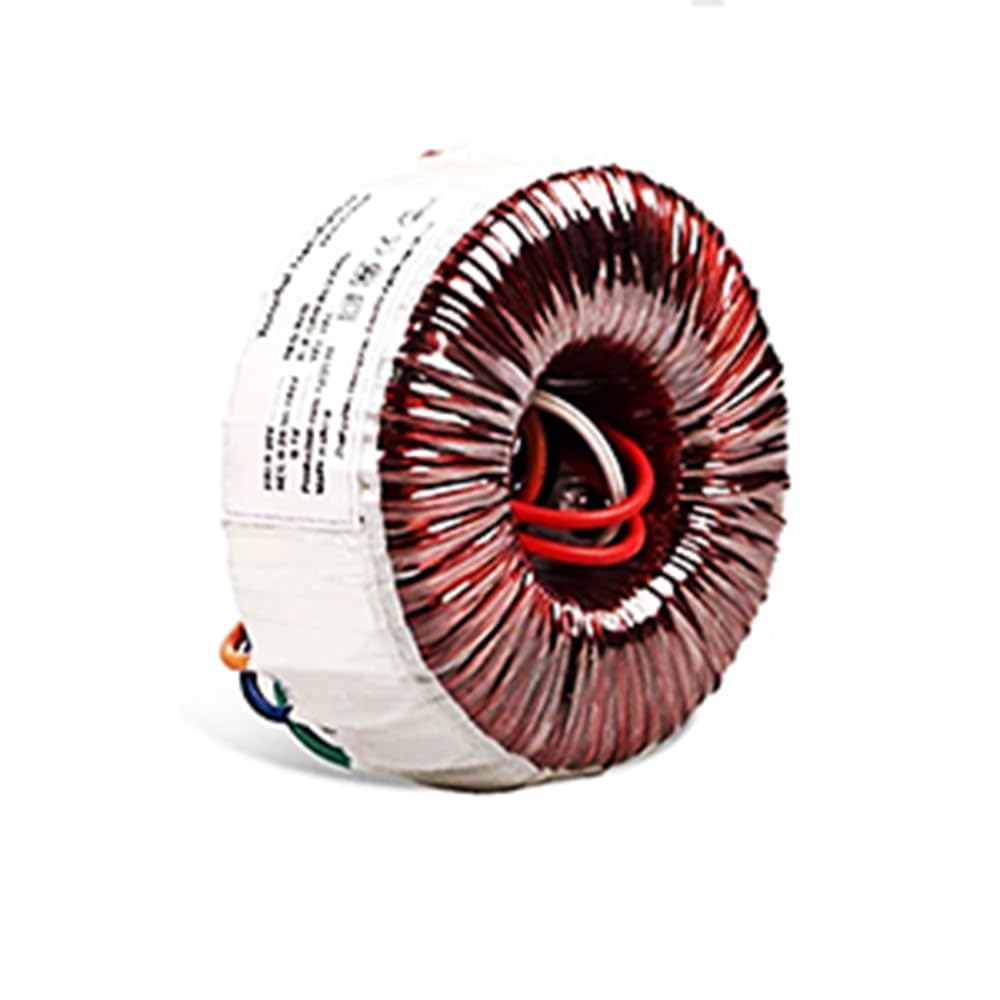

Toroidal Transformer Structure Why choose us? ATO step up/step down toroidal power transformers meet modern-day requirements for small size and lightweight.Multiple options for power capacity, all copper wire design, has numerous approvals covering a wide variety of international standards.It features a single primary voltage of 110V/120V/220V/230V/240V AC 50/60Hz and a single or double secondary voltage like 12V/24V/2x24. The toroidal shape gives a significantly higher efficiency compared to conventional transformers of the same size. Our standard safety toroidal transformers can be ordered easily and are customizable. If you cannot find the products you are looking for, or you have special demands, We look forward to helping you! What is a Toroidal Transformer Used for? Toroidal Power Transformers for Audio Among the toroidal transformer products, there are many well-known products in audio equipment. Such as high-performance products that can be used as power transformers in high-power hi-fi amplifiers and power transformers for medium and small power audio equipment. For Electrical control Toroidal transformers can be used in current and voltage transformers. New high-performance magnetic materials such as permalloy soft magnetic materials, amorphous materials or nanocrystalline alloys can be used as magnetic cores, with precise intelligent instruments and special testing methods. It can ensure accurate transformer parameters and completely consistent performance. For Medical equipment Toroidal transformers are specially designed and manufactured for medical equipment. In addition to high efficiency, high reliability and high safety requirements, it also especially strengthens the electrical strength and improves the anti-humid heat performance. A thermal fuse is also required to be added inside the transformer to ensure reliability. ATO 50VA Toroidal Transformer ATO 70VA Toroidal Transformer ATO 150VA Toroidal Transformer ATO 200VA Toroidal Transformer ATO 300VA Toroidal Transformer ATO 350VA Toroidal Transformer Buying Options Add to Cart Buying Options Buying Options Buying Options Buying Options Customer Reviews 5.0 out of 5 stars 2 — — — 5.0 out of 5 stars 1 — Price $89.35$89.35 $101.47$101.47 $129.48$129.48 $148.69$148.69 $147.43$147.43 $153.36$153.36 Power 50V 70V 150V 200V 300V 350V Secondary Current 4.17A each winding 5.83A 2.5A each winding 5A each winding 6.25A 1.59A No-load Loss <1.08W <1.26W <2.5W <1.92W <4W <4W External Diameter 90mm 100mm 115mm 120mm 120mm 125mm Height 41mm 45mm 56mm 54mm 56mm 66mm Pedestal 100*100mm 100*100mm 120*120mm 120*120mm 120*120mm 120*120mm Mounting Hole Distance 90*90mm 90*90mm 110*110mm 110*110mm 110*110mm 110*110mm Weight 1.2kg 1.2kg 2.5kg 3kg 3kg 4kg ATO 500VA Toroidal Transformer ATO 600VA Toroidal Transformer ATO 800VA Toroidal Transformer ATO 1000VA Toroidal Transformer ATO 1500VA Toroidal Transformer ATO 2000VA Toroidal Transformer Buying Options Buying Options Buying Options Buying Options Buying Options Buying Options Customer Reviews — — — — — — Price $192.78$192.78 $216.55$216.55 $264.47$264.47 $383.25$383.25 $490.65$490.65 $686.69$686.69 Power 500V 600V 800V 1000V 1500V 2000V Secondary Current 20.83A each winding 12.5A 7.27A 33.33A each winding 62.5A each winding 166.67A No-load Loss <4.5W <3.77W <5W <5.23W <5.5W <5.75W External Diameter 136mm 141mm 158mm 161mm 193mm 207mm Height 65mm 66mm 67mm 78mm 80mm 90mm Pedestal 140*140mm 140*140mm 160*160mm 160*160mm 180*180mm 210*210mm Mounting Hole Distance 130*130mm 130*130mm 150*150mm 150*150mm 170*170mm 200*200mm Weight 5kg 5.5kg 7kg 9kg 13kg 16kg 120VA Toroidal Transformer Specifications Phase Single phase Primary Voltage 110V AC (Optional: 110V, 120V, 220V, 230V, 240V) Secondary Voltage 12V AC (Optional: 12V, 24V, 48V, 110V, 220V, 2x6V, 2x12V, 2x15V, 2x24V, 2x30V, 2x35V, 2x40V, 2x50V, can be customized) Secondary Current 10A No. of Inputs 1 intput No. of Outputs 1 output (4-wire 2 outputs are available) Note: For the transformer with 2 outputs 4-wire, each output provides the same voltage and current level, the sum of 2 output power capacities is equal to the total capacity. Frequency 50Hz/60Hz Winding Material Copper Wire Coil Structure Toroidal Efficiency 90%-96% Input Wire UL1015-18#Red Output Wire UL1015-16#Blue, Black Voltage Strength DC2500V Insulation Impedance ≥500MΩ Cooling Method Natural air cooling Temperature +40℃ No-load Loss <2.5W External Diameter 105mm Height 47mm Pedestal 100*100mm Mounting Hole Distance 90*90mm Weight 2.3kg
